Deploying Weather-Resistant Large-Span Air Dome for Isolated and Quiet Construction
Features
Name | Deploying Weather-Resistant Large-Span Air Dome for Isolated and Quiet Construction |
Size | - |
Area | 2.72acre (11,000 ㎡) |
Material | High strength fabric coated membrane PVDF |
Equipment | main membrane, fan units, backup generator, anchoring system, etc. |
Location | Hebei |
Completion Year |
Introduction

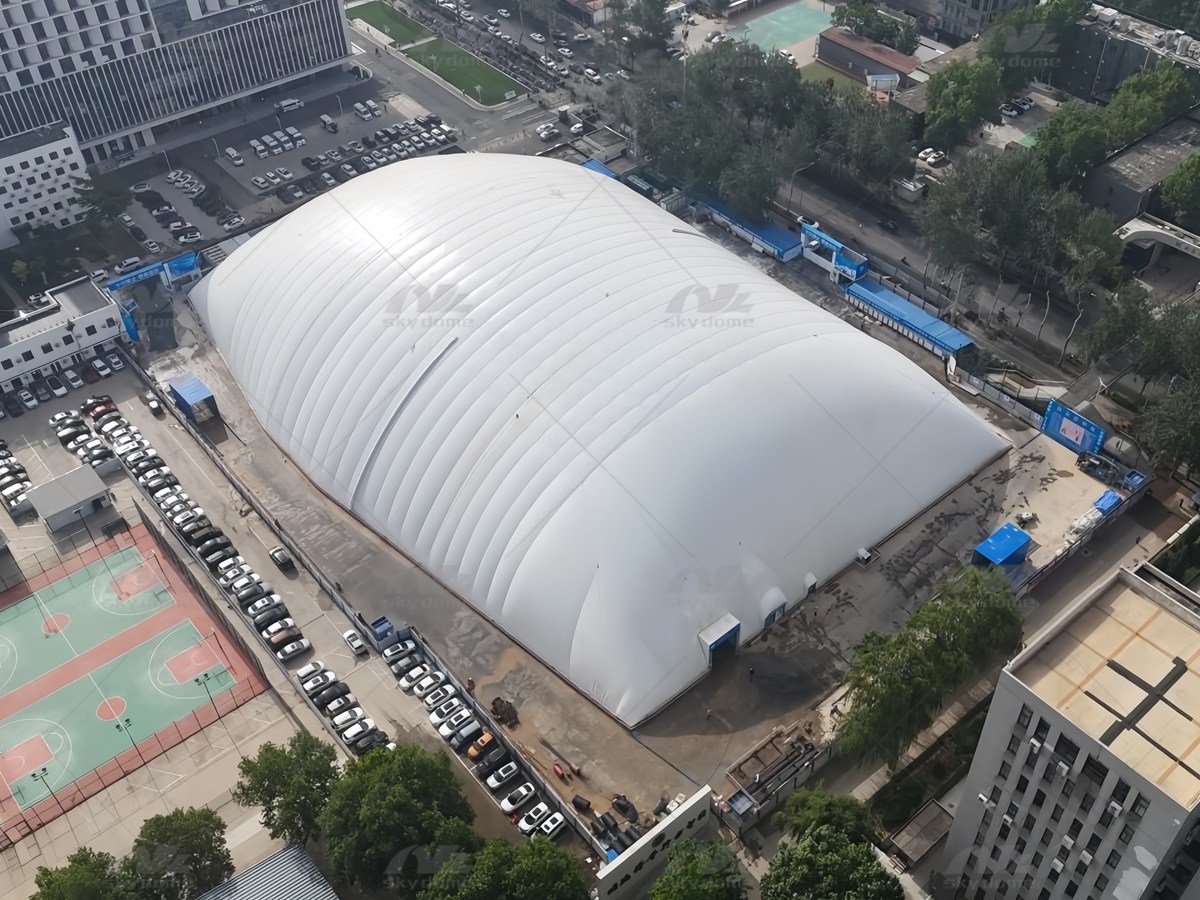

This foundation pit air dome, covering 11,000 sqm with a height of 27 meters, creates a fully isolated and column-free construction space.
It effectively reduces construction noise by over 80% and integrates dust suppression systems for a 90% dust reduction, significantly minimizing impact on adjacent hospitals and patients. The structure, built from durable, airtight polymer membrane, is stabilized by an external network of high-strength steel cables, enabling it to withstand typhoons up to Level 12. Its intelligent control system, equipped with various sensors, acts as a "brain" to monitor operations and trigger alarms. A 24/7 fresh air system ensures consistent internal air quality and pressure, maintaining a comfortable, efficient, and safe construction environment year-round.

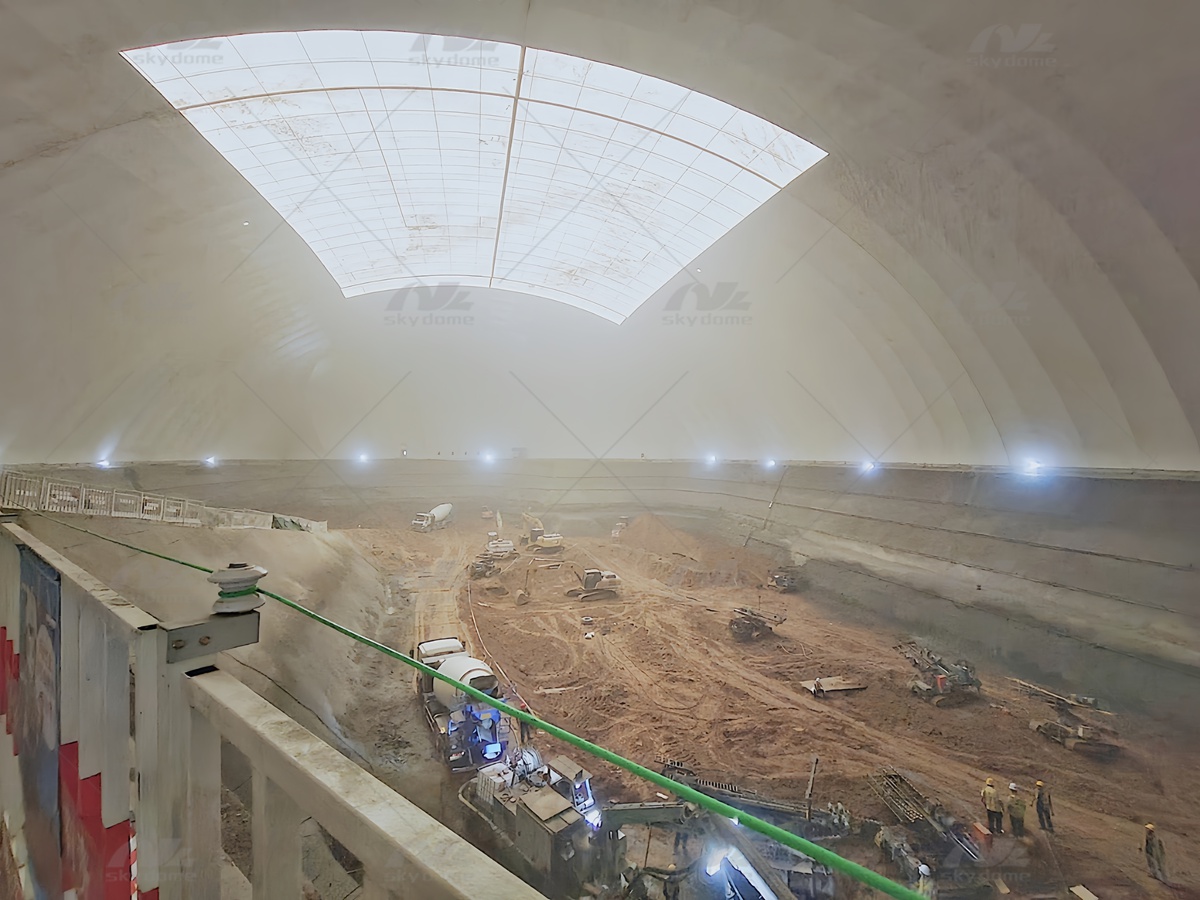

the interior view of the foundation pit air dome
