Eco-friendly Fast Construction Foundation Pit Air Dome
Features
Name | Eco-friendly Fast Construction Foundation Pit Air Dome |
Size | - |
Area | 0.76acre (3,085㎡) |
Material | High strength fabric coated membrane PVDF |
Equipment | main membrane, fan units, backup generator, anchoring system, etc. |
Location | Shanghai |
Completion Year |
Introduction

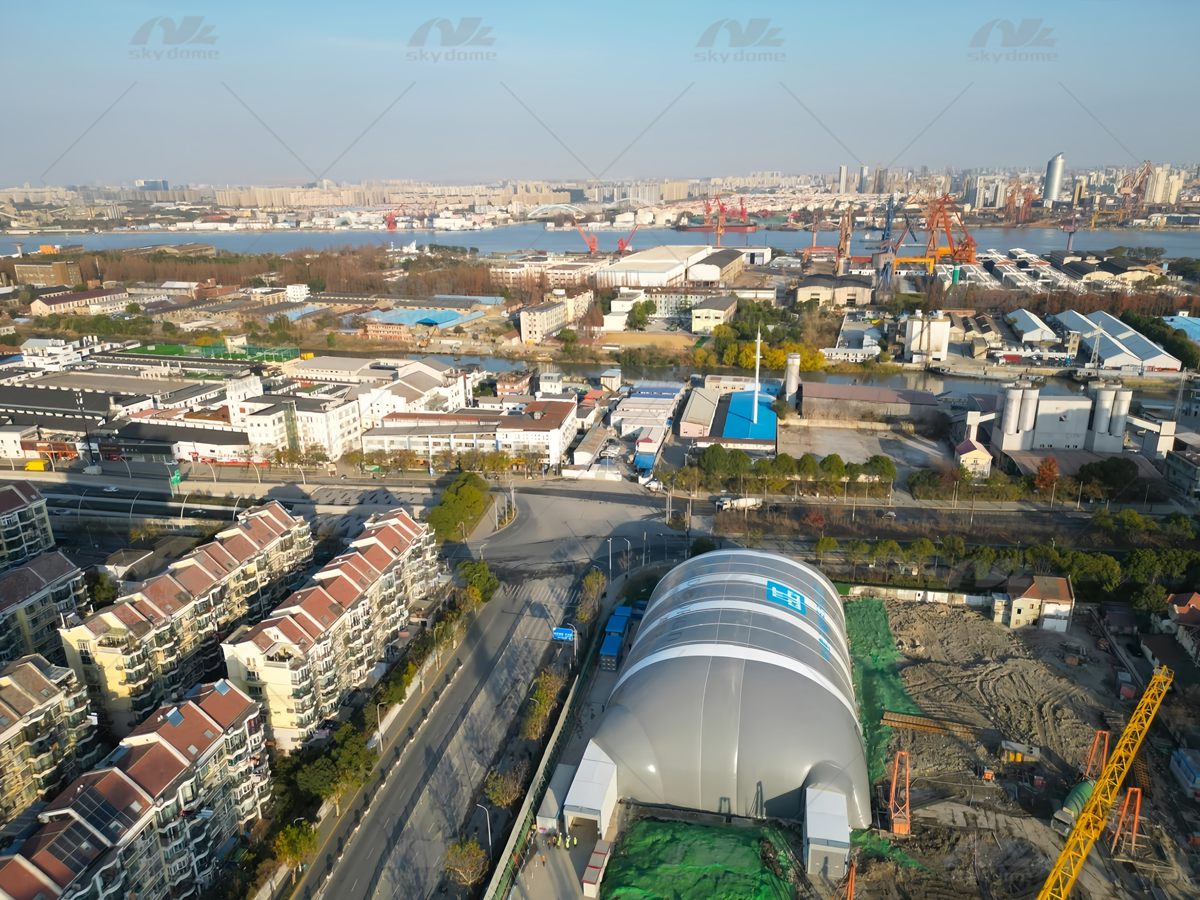

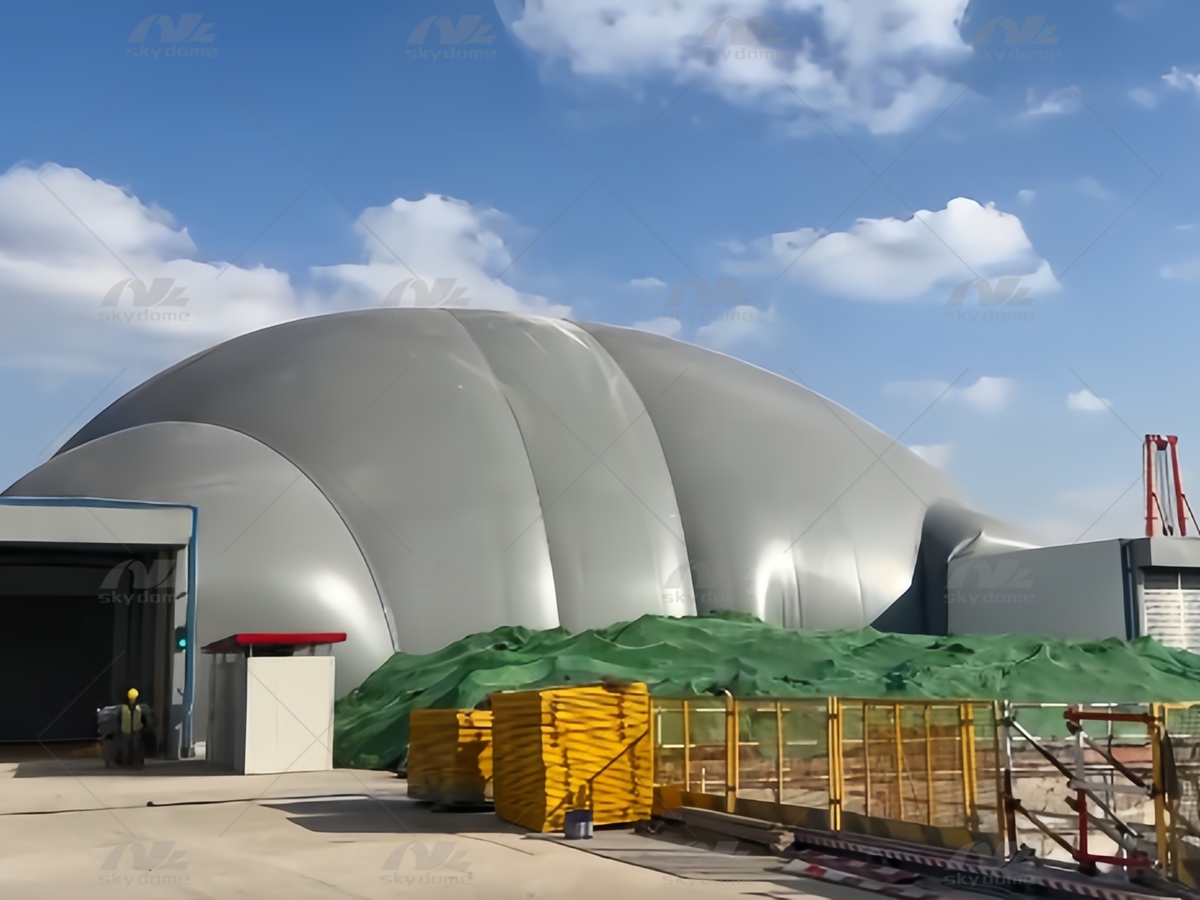

This construction site is located at the two roads intersection, neighboring residential areas and a school, which requires strict environmental protection measures. The 20-meter-high air dome covers 3,085m² (equivalent to 7.35 basketball courts), providing column-free space for heavy equipment operation. After adopting this advanced green construction technology, the project achieves 95% dust containment and 80% noise reduction.
The structure features a steel cable grid system securely anchored to ensure stability. Utilizing high-density polyester with modified PVDF coating, the grey membrane offers enhanced self-cleaning and antibacterial properties while minimizing light pollution. The access system maintains air pressure stability through separate personnel and vehicle gates.
Enabling all-weather construction despite adverse conditions, the air dome significantly improves productivity. Its reusable design supports sustainable construction, reducing energy consumption and promoting resource efficiency.

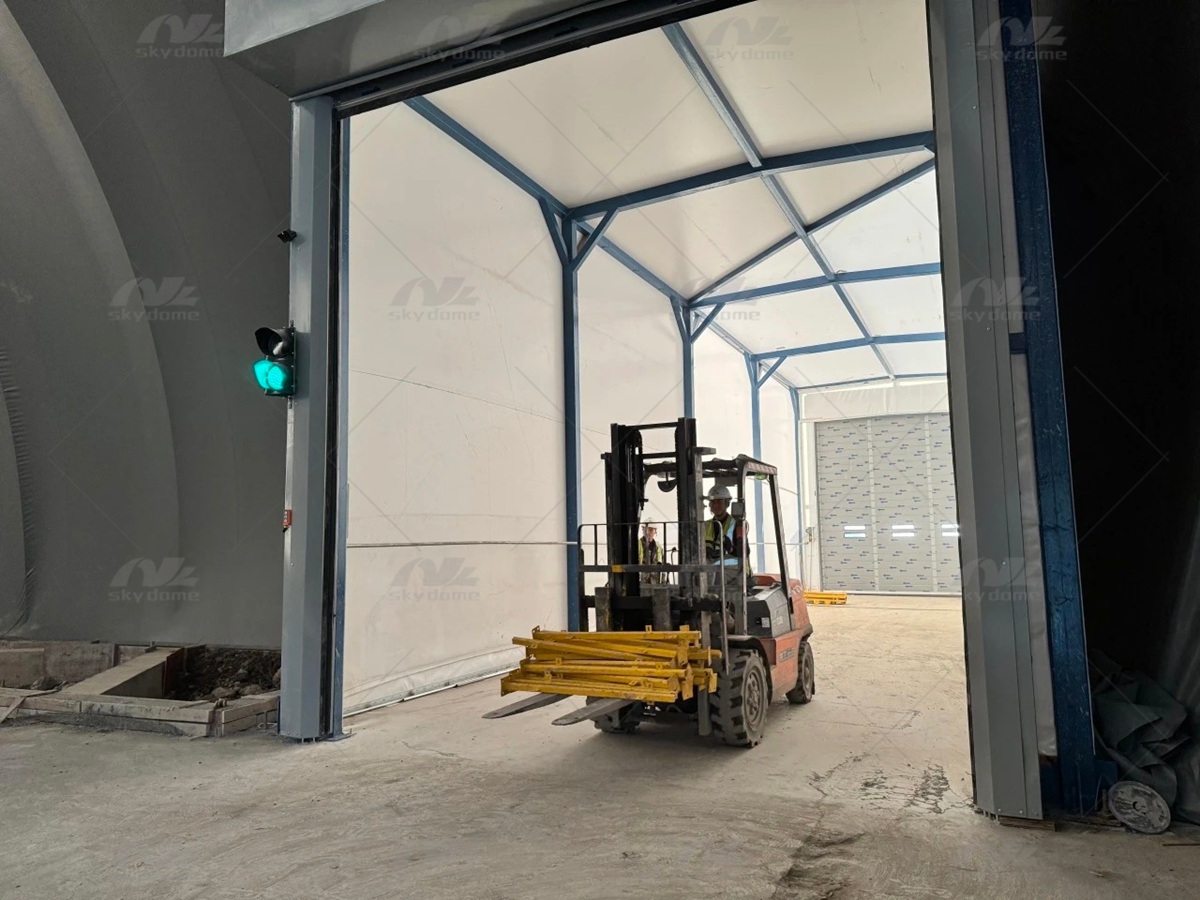

the vehicle airlock access of the foundation pit air dome
